You set most status board options in the admin portal, on the Status Board tab of the display. You can also set many options in the board's URL. A URL option applies only to the screen that opens that URL. Use it when two screens share one status board but need different settings, or when your MDM provisions the URL.
The board URL has this format:
https://statusboard.meetingroom365.com/{theme}/?key={your-display-key}
The {theme} path is v3/, v4/, madison/ or theodore/. For v2, leave the path empty.
Settings in the admin portal
On the Status Board tab, you set:
- Theme Version: v2, v3, v4, Madison or Theodore.
- Brand color, header title, header logo URL and header eyebrow.
- Rotation, sort order, truncation length and scrolling.
- Privacy, columns to hide, and the options for each theme.
On the Advanced tab, you edit the board's configuration as JSON. Use it for i18n (translations) and styles (custom CSS).
On the Description tab, under Show Status for Offline Displays, you select room displays to show on the board when their tablets are offline. Then select Save Offline Displays.
New status boards use v2. To use another theme, change Theme Version.
URL parameters
Add parameters to the board URL. For example: ?key=your-display-key&sortby=status&twentyfour=1.
A URL parameter overrides the admin setting on that screen, with these exceptions:
- On v2 and v3, the admin domain setting overrides
domainin the URL. - On v4, Madison and Theodore,
noScroll=0does not turn scrolling back on if the admin setting turns it off.
Not every theme reads every parameter. The Themes column lists the themes that read it.
Identity and filtering
| Parameter | Themes | Purpose |
|---|---|---|
key |
All | Display Key of the status board. Required for live data. |
domain |
All | Tenant domain. Exchange tenants often need it. |
locationKey |
All | Group name. The board shows only room displays in this group. |
localKeys |
v4, Madison, Theodore | Comma-separated room Display Keys to show when their tablets are offline. |
onlyRooms |
Madison, Theodore | Comma-separated rooms to show. Each item is a room email address, Display Key or room name. |
Branding and layout
| Parameter | Themes | Purpose |
|---|---|---|
brandColor |
All | Brand color as hex, for example ffaa00. |
logo |
All | URL of the logo image. |
title |
v4, Madison, Theodore | Header title. |
locationString |
v4, Theodore | Header eyebrow, for example Meeting Rooms · Floor 4. |
theme |
All | v2 and v3: light only (dark is the default). v4: light or dark (default dark). Madison and Theodore: light, dark or auto (default auto). On v4, theme=inset sets dark with the inset layout. |
layout |
v4 | edge (default) or inset. |
palette |
Madison, Theodore | warm (default), neutral or navy. |
rotate |
All | Rotates the whole board: 90, -90 or 180. |
styles |
Madison, Theodore | Custom CSS. On other themes, set styles on the Advanced tab. |
Privacy and columns
| Parameter | Older form | Themes | Effect |
|---|---|---|---|
privacy |
Madison, Theodore | Shows every meeting title as "Reserved". | |
hideMeetings |
meetings=0 |
v2, v3, v4 | Hides the meeting title column. |
hideDescription |
descriptions=0 |
v2, v3, v4 | Hides the description column. |
hideOrganizers |
organizers=0 |
All | Hides organizer names. |
hideLocation |
location=0 |
v2, v3, v4 | Hides the location column. |
hideStatuses |
statuses=0 |
v2, v3, v4 | Hides the availability badges. |
The older forms use =0 to hide a column, for example ?meetings=0.
Behavior
| Parameter | Themes | Purpose |
|---|---|---|
sortby |
All | location, meeting, status or time. On v2, v3 and v4, you can combine values, for example sortby=locationstatusmeeting. |
scroll=no or noScroll=1 |
All | Turns off scrolling and pages. All rooms fit on one screen. |
showMultiple=no |
All | Shows 1 meeting per room instead of cycling through several. |
truncLength |
All | Number of characters before a meeting title is cut short. The default is 48. |
twentyfour=1 |
All | Shows times in 24-hour format. |
hoursForward |
v4, Madison, Theodore | Number of hours ahead to show meetings. The default is 12. |
locale |
v4, Madison, Theodore | Locale for dates and times, for example de. |
rotationSeconds |
Madison, Theodore | Seconds per page. The default is 8. |
Madison only
| Parameter | Purpose |
|---|---|
showTimeline |
false hides the day timeline on each card. |
cardWidth |
Minimum card width in pixels. The default is 360. |
emphasis |
status (default) or next. |
upcomingCount |
Number of upcoming meetings on each card. |
Theodore only
| Parameter | Purpose |
|---|---|
showProgress |
false hides the progress bar of the current meeting. |
Demo and preview
Do not use these parameters on a screen in the office.
| Parameter | Themes | Purpose |
|---|---|---|
demo=1 |
All | Shows sample rooms. The board does not load live data. |
preview=1 |
Madison, Theodore | Shows your board settings with sample rooms. The admin portal uses it for thumbnails. |
Example URL
This demo board uses the v2 theme and demo=1. On your own board, use key= instead of demo=1.
Theme versions
Set the theme in Theme Version on the Status Board tab.
| Version | URL path | Look |
|---|---|---|
| v2 (default for new boards) | / |
Classic columns |
| v3 | /v3/ |
v2 columns with newer styling |
| v4 | /v4/ |
Light or dark, edge or inset layout |
| Madison | /madison/ |
Card grid, automatic light or dark, timeline |
| Theodore | /theodore/ |
Rows like a departures board, progress bars |
If you change the theme in the admin portal, a board on the v2 path moves to the new path the next time it loads its settings. A board on the v3 path also moves, except back to v2. A board on /v4/, /madison/ or /theodore/ does not move. Change its URL on the screen.
Equipment icons

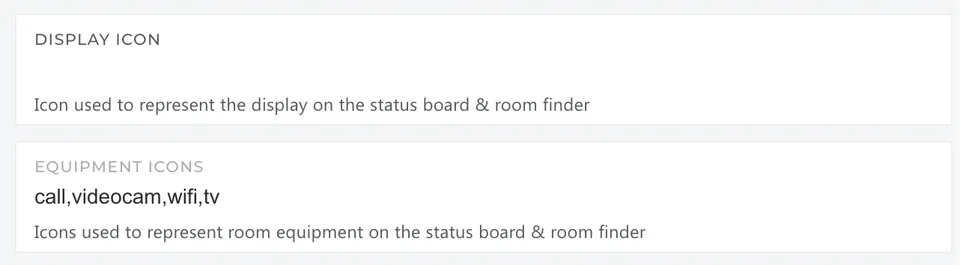

You set equipment icons on each room display, not on the status board. Open the room display, select the Description tab, and find Status Board Icons. In Equipment Icons, enter Ionicons names separated by commas, for example wifi,tv,videocam.

The v3, v4, Madison and Theodore themes show equipment icons. The v2 theme does not.
Custom CSS and translations
To add custom CSS, enter it as styles on the Advanced tab. For a full custom theme, contact us. We apply the CSS for you.
To translate the board, enter an i18n JSON object on the Advanced tab. See How to localize your Status Board Display.
If you have questions, contact us from your admin portal.
